VULCAN MACHINE WERKS 3L3V3N-C 9MM

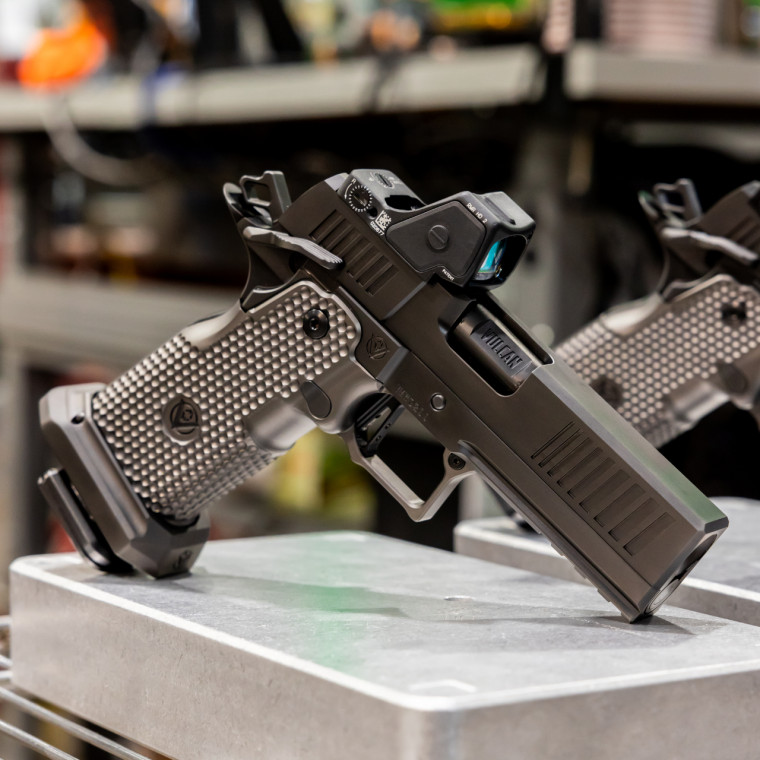

VULCAN 3L3V3N-C

This project began in November of 2021 with the idea of doing our spin on the double stack 1911, our way. We wanted to make something unique, something different. This process started with the name. It had to embody the platform while paying homage to the original. We spent a while going back and forth on the title but kept coming back to, “11”. In our own fashion, we couldn’t just roll with the name “11”; we needed to add our spin on it. Enter L33T Speak (a programming/gaming language and nod to the owner’s extensive time in IT), flipping the vowels to numbers you get 3L3V3N. The name is unique, acknowledges the beauty of the original model, and hits the target (literally and figuratively).

  The sleek styling and integrated design features of our slide assembly come from tirelessly researching the offerings/designs of many industry-leading manufacturers and looking for something that hasn’t been done. This process began by looking at the two most prominent design traits for this platform (the heavy chamfer “Tri-Top” and the “Filleted”/conventional rounded top design) and immediately rejecting them in in favor of going in the exact opposite direction. The end user can be assured in the knowledge of our platform being not only structurally strong, but supremely reliable, accurate, and light recoiling as well. We then proceeded to look at the final (subsequently) and biggest issue the end user faces with the high capacity 1911. This problem is the necessity of a mounting plate system for today’s most popular optics. That is why we set about redesigning the slide as pretext to allow for direct mounting the owner's optic of choice. The cradle cut method allows not only a far stronger optics mounting solution, but also allows for a much lower sight axis to the bore. Bucking the industry “norm” we also decided to forego the use of traditional iron-sights in favor of an optics only platform. To shoot the 3L3V3N is to become a believer.

The 3L3V3N-C Specifications:

• *Patent Pending* Modern / Minimalist Design - Major Shift from the Industry Norm.
• Commander Model (4.20") With Full Length Dust Cover and Rail. 4140 Heat Treated Steel Slide & Frame

• Diamond Lapped Slide to Frame Fitting

• DLC'd Slide / Frame / Barrel / Guide rod / Spring Cup / Fire Controls / Hammer
• 9mm BarSto Match Grade Barrel / Flush Cut / 30 Degree Reverse Crown / Chamber Chamfer
• Patent Pending Ignis Porting System™ (Optional)
• Direct Mill Optic Cut. No Plates (Dot Gun Only - Select Optic Footprints Available)*
• Vulcan / Miller Precision Co-Engineered 7075 Billet Aluminum Grip with Patent Pending Abi-Mag Release (Sold with Non-Functioning Grip Safety)
• Hand Fit Components
• Laser Engraved Angled Serrations
• Marvel Relief Cut
• Chamfered Edges
• Custom Made Tool-Less Guide Rod System
• Vulcan Flat Face Trigger Tuned to 3lbs - 3-1/2lbs
• Vulcan Square Hammer
• Vulcan Square Magwell
• Two 17rd DLC’d Mags with Matching Gun Metal Gray Vulcan Base Plates (Staccato 2011® Mags)
• Custom Vulcan Pistol Case
• 10/11/12lbs Recoil Springs (Ported Variant / Ships with 11LBS Spring Installed)
• 13/14/15lbs Recoil Springs (Non-Ported Variant / Ships with 13LBS Spring Installed)
• Firearm Weight 36.20 (without Mag and Optic )
• Accepts Most Major Brand Mag's (Some Tuning Might be Needed)

• Limited Lifetime Warranty

• Made in Texas

HOLSTERS VERIFIED:

• Tier 1 MSP with the X300 Light
• Double Alpha Flex Holster

  *Optic cuts are made for the specific optics listed. Compatibility with third-party manufacturers claiming to use the same footprint cannot be guaranteed.
