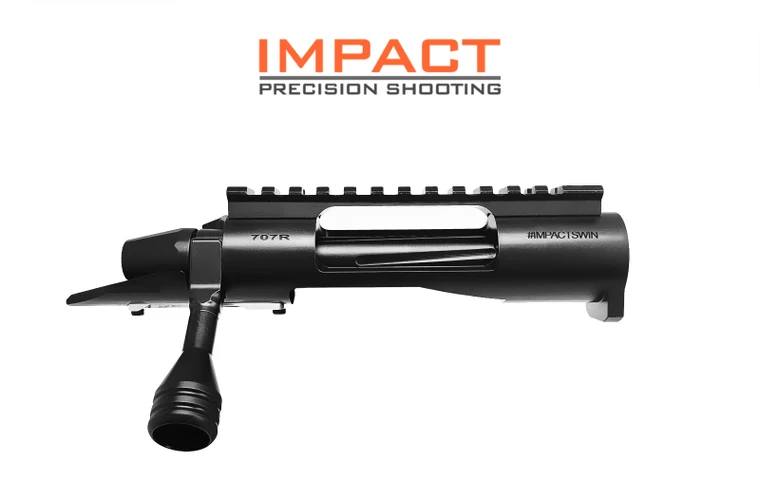

IMPACT PRECISION 707R SHORT ACTION

The Impact Precision 707R Short Action delivers the performance and precision of Impact’s original short actions in a lighter-weight configuration designed for hunting rifle builds. Based on the popular 737R and Short Action NBK, the 707R uses the same barrel tenon and headspace specifications as those actions and can readily accept 737R pre-fit barrels.

The 707R features a one-piece bolt engineered with proper geometry and clearance for smooth operation under field conditions. Fluting on the top and sides of the bolt body helps carry dirt away, while the smooth bottom portion promotes smooth cycling. A black carbon nitride finish increases surface hardness and lubricity.

Built on a Remington 700 Short Action footprint, the Impact 707R accepts Remington 700 triggers and features a 75- or 90-degree, two-lug bolt design with interchangeable bolt knobs. The action uses 1-1/16 x 16 TPI Class 3 tenon threads and weighs 29.5 ounces.

The 707R will feed rounds up to 2.960" OAL and works with AW and AICS magazines. It features an integral recoil lug, trigger hanger for easier field maintenance, and a 20 MOA rail secured with four screws and two pins. Available with .308, Magnum, ARC, or .223 bolt faces, the 707R provides a versatile foundation for a precision hunting rifle.

Features

• Based on the Impact 737R and Short Action NBK
• Same barrel tenon and headspace specifications as the 737R and Short Action NBK
• Accepts 737R pre-fit barrels
• One-piece bolt designed for smooth operation under field conditions
• Fluted top and sides of bolt body help carry dirt away
• Smooth bottom portion of bolt promotes smooth cycling
• Black carbon nitride finish increases surface hardness and lubricity
• Remington 700 Short Action footprint
• Accepts Remington 700 triggers
• 75- or 90-degree, two-lug bolt design
• Interchangeable bolt knobs
• Integral recoil lug
• Trigger hanger for easier field maintenance
• 20 MOA rail secured with four screws and two pins
• Available in .308, Magnum, ARC, or .223 bolt faces
• .700" diameter bolt
• Mini M16 extractor
• Compatible with AW and AICS magazines
• Not BDL compatible

Specifications

• Action: Impact 707R Short Action
• Action Footprint: Remington 700 Short Action
• Bolt Diameter: .700"
• Bolt Design: One-piece, two-lug
• Bolt Throw: 75 or 90 degrees
• Bolt Face Options: .308, Magnum, ARC, or .223
• Extractor: Mini M16
• Barrel Tenon: 1-1/16 x 16 TPI Class 3
• Barrel Compatibility: 737R pre-fit barrels
• Trigger Compatibility: Remington 700 triggers
• Maximum Feed Length: 2.960" OAL
• Magazine Compatibility: AW and AICS
• Rail: 20 MOA
• Rail Attachment: Four screws and two pins
• Recoil Lug: Integral
• Trigger Hanger: Yes
• Weight: 29.5 oz
• BDL Compatible: No
• Finish: Black Carbon Nitride
